ATOMIC STRUCTURE-d-orbitals

SHAPES OF d-ORBITALS

        The magnetic quantum number(m) for d- orbital are -2,-1,0,+1,+2
        It shows that d- orbitals have five possible orientations
        Accordingly there are five types of d- orbitals- dxy,dyz,dxz,dx2-y2 and dz2

 dxy,dyz and dxz are clover leaf shaped with four lobes along the respective planes.
 i.e.,in dxy orbital the lobes are in xy plane

In dyz orbital the lobes are along yz plane

In dxz orbital the lobes are along xz plane



In dx2-y2 oorbital the four  lobes are along the x and y axis

dz2 orbital is dumbell shaped with two  lobes along z axis with doughnut shaped electron cloud in the centre.

CHEMICAL KINETICS

ACTIVATION ENERGY

We know that nitrogen and oxygen combine to form nitrogen oxides.


Here is an interesting question. Air contains both oxygen and nitrogen, but why they do not combine  to  form nitrogen oxides by themselves.

To know the answer we should know what is activation energy?

" It is the additional energy required by the colliding molecules to attain threshold energy in addition to its potential energy."

Let's take a look at this energy level diagram.The potential energy of the reactant molecules i.e., in this case nitrogen and oxygen is indicated in the left side. The peak portion is called threshold energy. The molecules must reach the peak to undergo effective collision.

Now the molecules attained threshold energy by gaining additional energy which is called as activation energy.Thus the portion indicated between the < < marks gives you the activation energy.

.

Now you can see that nitrogen and oxygen have reacted to form nitric oxide.Also the P.E difference between the reactants and products is taken as enthalpy change.Here it is positive thus an endothermic process.

 So what's the answer for  the question asked before? yes nitrogen and oxygen in air needs activation energy to form nitric oxide.Unless they get it they wont react with each other.

SOLID STATE - CRYSTAL STUDIES

Bragg's spectrometer method

•  X-rays are used to study the crystal structures.

•  Bragg's spectrometer works on the principle of diffraction.When X-rays produced from coolidge tube are made to fall on the crystal at a particular angle of incidence,the rays gets diffracted and enter the ionisation chamber and ionise the gas present in it.Thus current is produced,which is measured by an electrometer.

• The current strength is a direct measure of intensity of the diffracted rays.
• Here you can see a real Bragg's spectrometer

 Note the deflection in the electrometer i.e, at this angle the current is very low

 The current strength is gradually increasing

 At this angle the maximum diffraction occurs,thus it is taken as first order reflection i.e., n = 1

 Again when you increase the angle current drops to minimum and maximum reflection occurs at another higher angle,which can be taken as second order reflection.

ELECTROCHEMISTRY II

Electrochemical Series
                  "Electrochemical series is a list of metal electrodes arranged in the decending order of standard reduction potentials."

•  Standard reduction potentials of electrodes can be determined by connecting  the electrode with standard hydrogen electrode, whose reduction potential is arbitarily taken as zero volts.

• According to IUPAC conventions SHE should always be connected in the right hand side.

• Let's determine the standard reduction potential of zinc electrode as follows

• Thus the reduction potential of zinc is found to be - 0.76 V .The negative sign shows that zinc cannot be reduced easily i.e., it can easily undergo oxidation.
• Since the metals are arranged in the decending order of reduction potentials, the metals present in the top of the series undergo reduction(strong oxidising agents) and the metals present below undergo oxidation(strong reducing agents).

CARBONYL COMPOUNDS

TOLLEN'S AND FEHLING'S TESTS

These two tests are used to identify the aldehydes and to distinguish them from ketones.

Tollen's reagent - silver nitrate + ammonium hydroxide

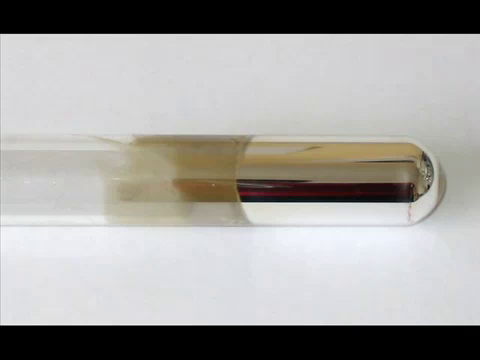

Aldehydes can reduce Tollen's reagent to metallic siver,which is deposited along the side walls of a test tube forming a silver mirror.(silver mirror test)

Fehling's solution - copper sulphate + sodium potassium tartarate

Aldehydes can reduce Fehling's solution,so that blue cupric ion is reduced red cuprous oxide.

ISOMERISM IN ORGANIC COMPOUNDS

CONFORMATIONS OF CYCLOHEXANE

"  Conformations are various forms of a molecule which arise due to C-C single bond rotation."

Cyclohexane exist in two forms called chair and boat forms.

Cyclohexane contains totally 12 C-H bonds. These bonds are classified into two types axial bonds and equitorial bonds.

 Axial bonds (blue coloured ) are those parallel to the molecular axis

Equitorial bonds(red coloured) are those at 70 or 110 degree to the molecular axis.


The chair form can interconvert itself to another chair form where all the axial bonds become equitorial and vice versa.

i.e., in the fig. now all the red becomes axial and all the blue become equitorial.
